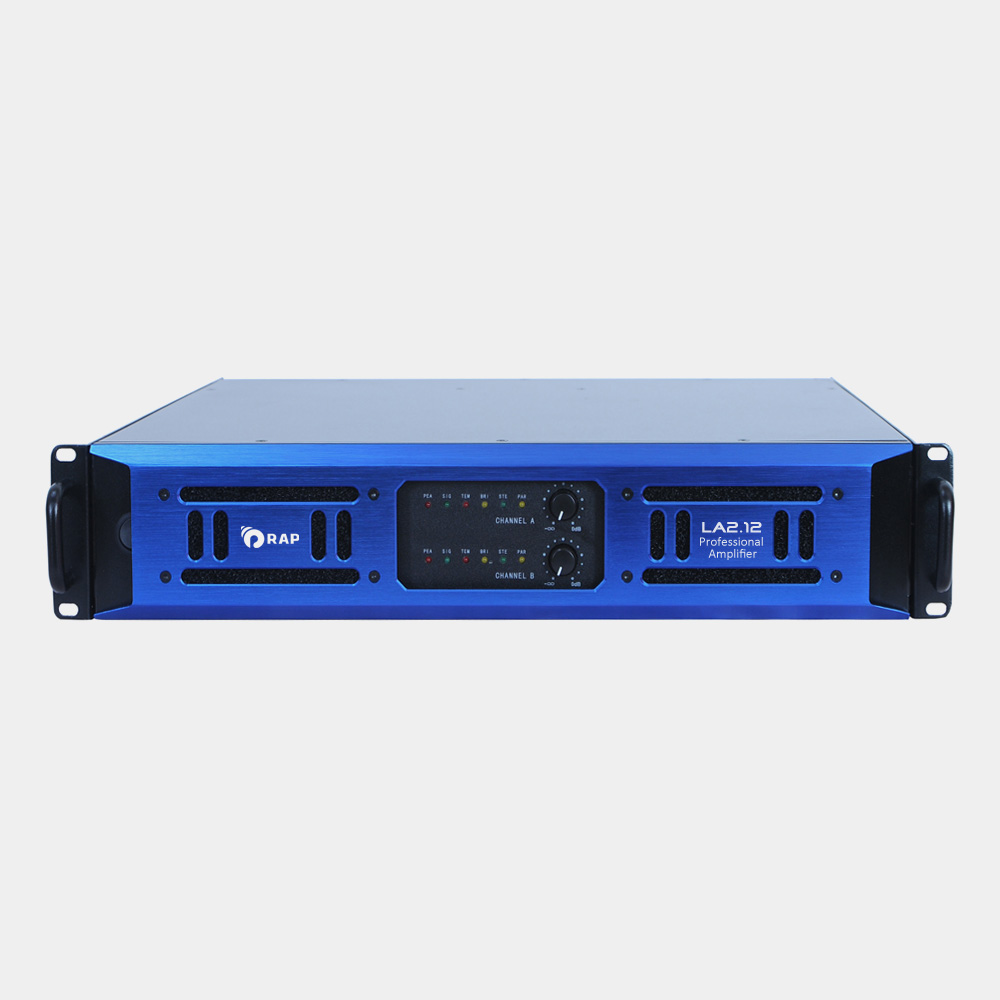

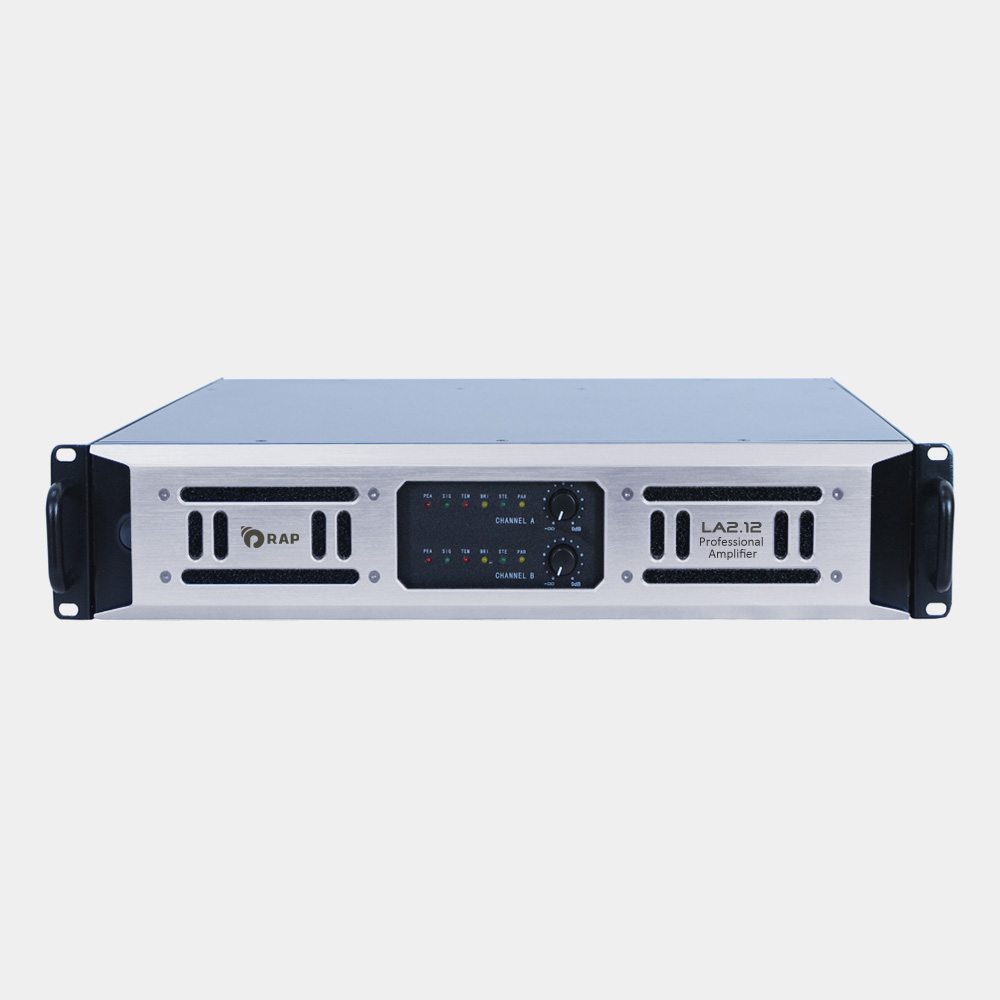

LA2.12

Two-channel professional power amplifier

The radiator is electrically suspended, and the power transistor and the radiator are directly pressed together to avoid the traditional insulating cushion.

  Heat transfer barrier, the power transistor can quickly release heat and achieve no temperature difference heat transfer with the heat sink

Each power transistor approaches the cold air inlet with a uniform shortest distance, and the temperature between them is consistent, which can be

  Ensure the consistency of the working state of the power tube

●Break through traditional design and create new technical limits of power/weight ratio and power/volume ratio

●Dual DC variable speed fan cooling ACL, IGM, AUTORAMP, TOURCLASS protection function>>

  The unique power supply scheme reduces the power supply requirements of the amplifier circuit

Stereo power   8 ohms 1200W×2, 4 ohms 1800W×2, 2 ohms 2400W×2

●Bridge power     8 ohms 3600W, 4 ohms 4800W

●Parallel power     2 ohm 3600W, 1 ohm 4800W

●Total Harmonic Distortion:<0.03% @1kHz

●Frequency response:    ±0.5dB@20Hz~20kHz

●Sensitivity:      0dBu(0.775Vrms)@1kHz
