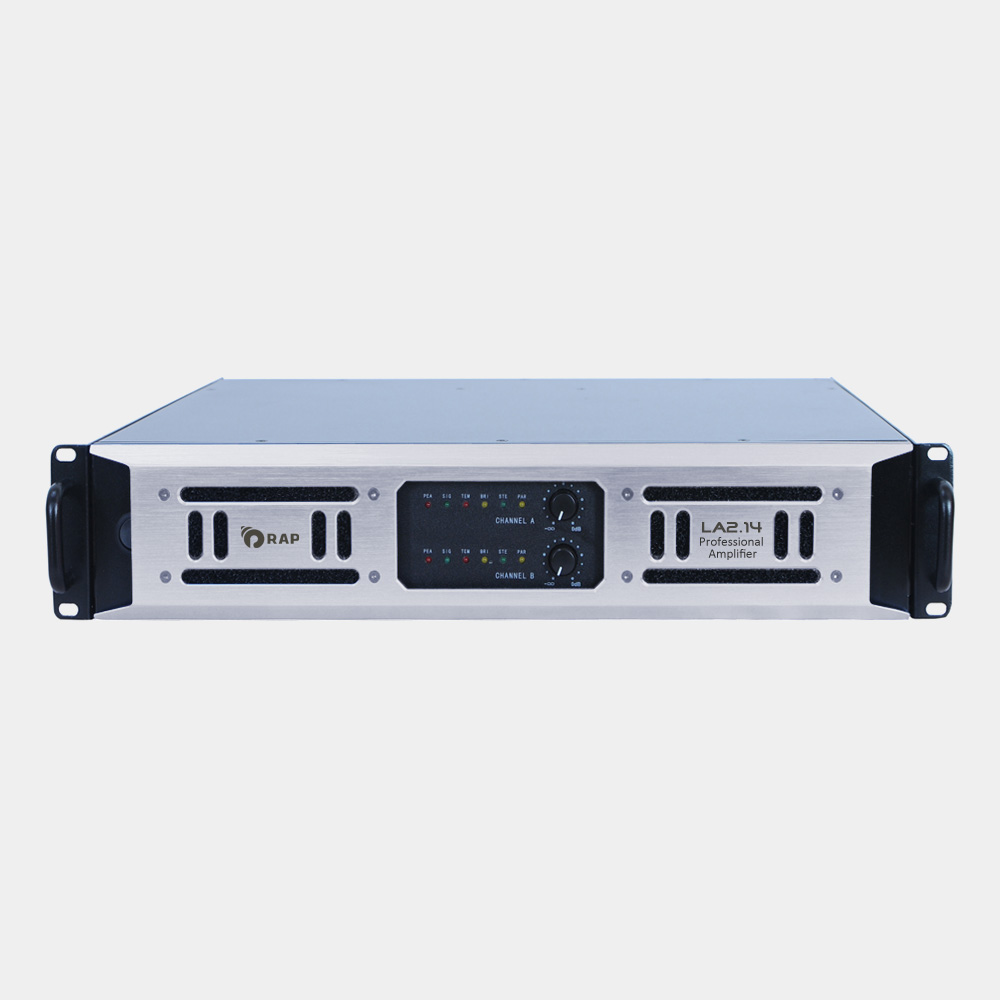

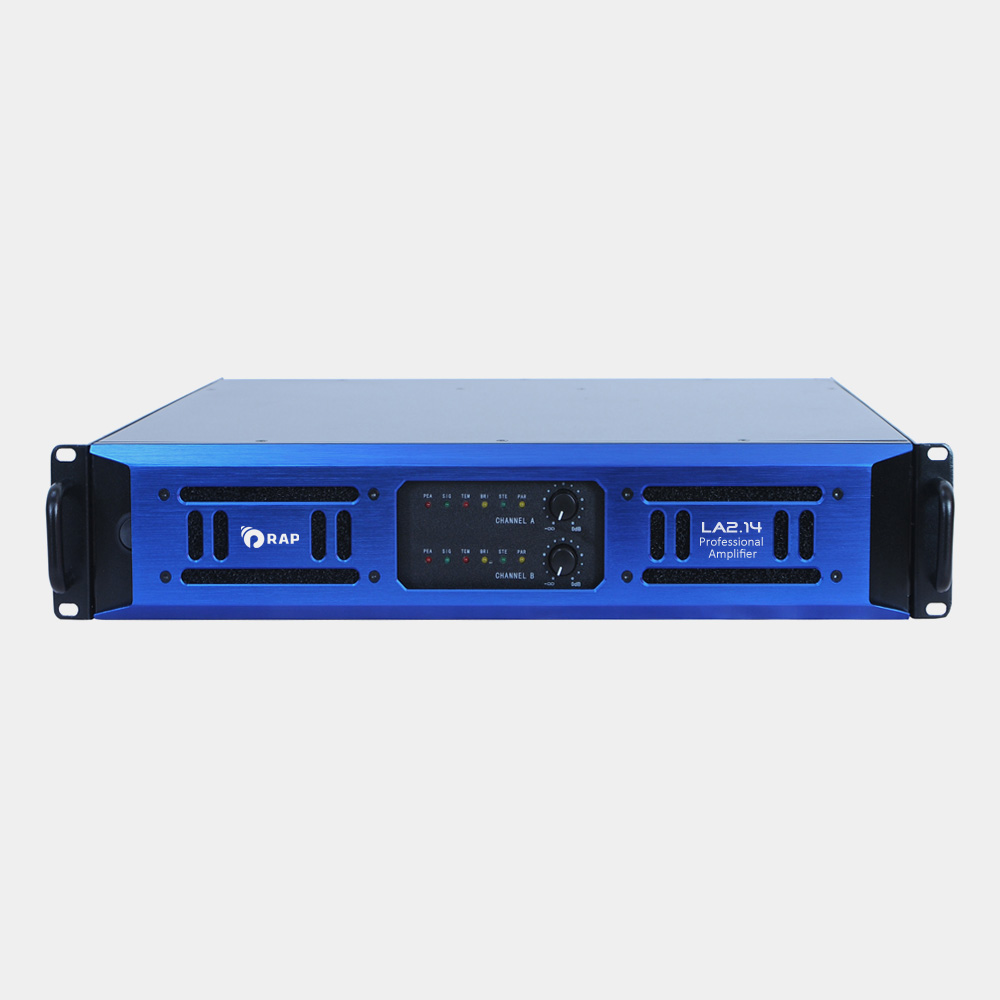

LA2.14

Two-channel professional power amplifier

The radiator is electrically suspended, and the power transistor and the  radiator are directly pressed together to avoid the traditional insulating  cushion.

Heat transfer barrier, the power transistor can quickly release heat  and achieve no temperature difference heat transfer with the heat sink

Each power transistor approaches the cold air inlet with a uniform shortest  distance, and the temperature between them is consistent, which can be

Ensure the consistency of the working state of the power tube

●Break through traditional design and create new technical limits of  power/weight ratio and power/volume ratio

●Dual DC variable speed fan cooling ACL, IGM, AUTORAMP, TOURCLASS protection  function>>

The unique power supply scheme reduces the power supply requirements of  the amplifier circuit

Stereo power 8 ohms 1400W×2, 4 ohms 2100W×2, 2 ohms 2800W×2

●Bridge power  8 ohms 4200W, 4 ohms 5600W

●Parallel power  2 ohms 4200W, 1 ohms 5600W

●Total Harmonic Distortion:<0.03% @1kHz

●Frequency response:  ±0.5dB@20Hz~20kHz

●Sensitivity:   0dBu(0.775Vrms)@1kHz
