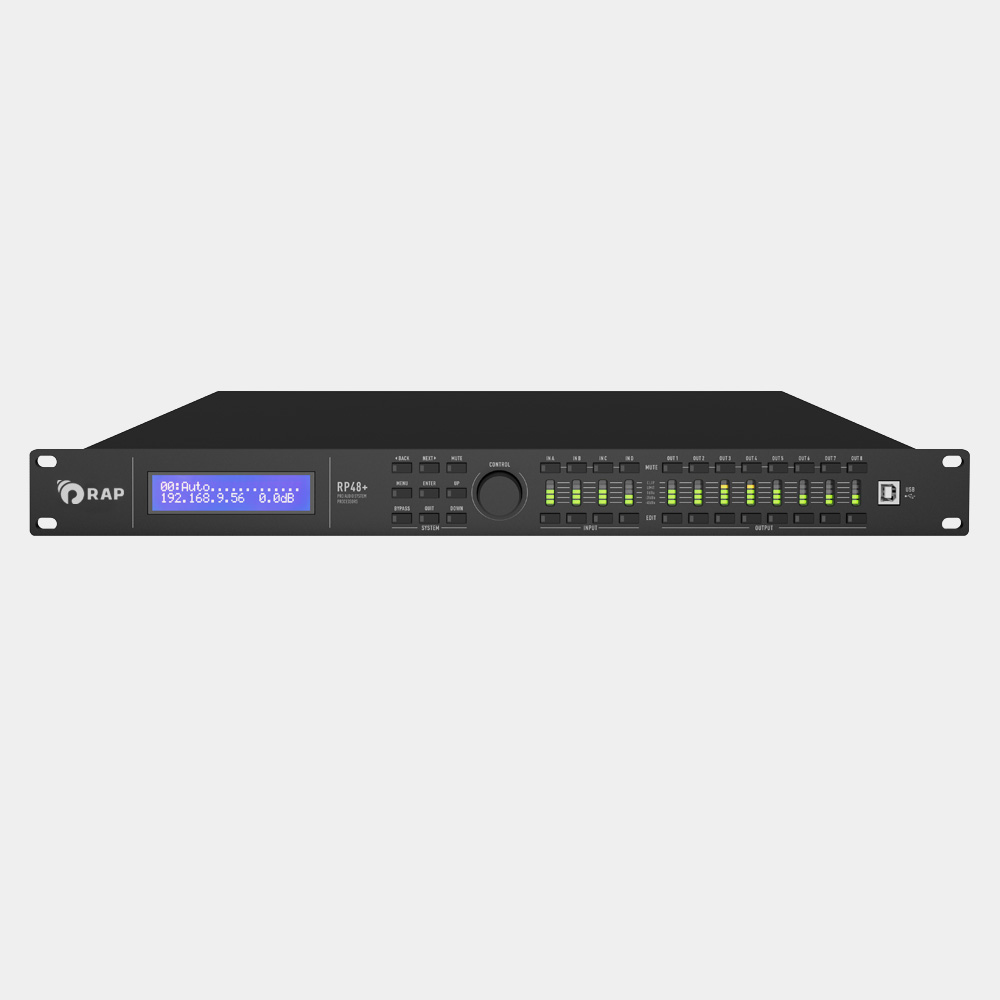

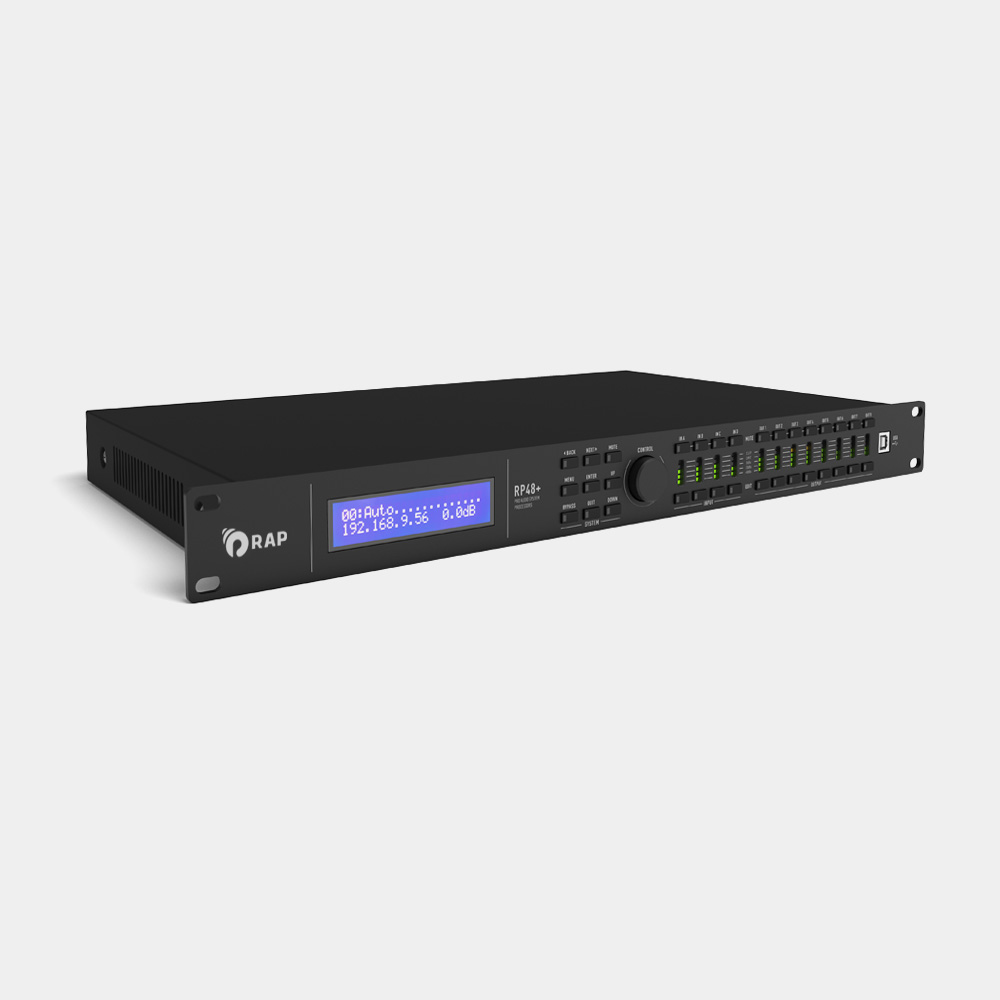

RP48+

1. Using the fourth generation DSP chip of American Analog Devices--ADSP-21489 400MHz 32/40-bit floating-point DSP, 96KHz sampling rate

Adopt professional-grade 24-bit A/D and D/A conversion chips, ELNA electrolytic capacitors and other world-renowned audio-specific devices, the sound is pleasant to the ear;

2, Built-in sine, white noise, noise signal generator;

3, Input signal processing: volume, phase, mute, noise gate, feedback suppressor, parametric equalization, dynamic equalization, crossover, compressor,Delayer;

4, Output signal processing : Matrix mix, volume, phase, mute, crossover, compressor, limiter, delay;

5, 10-band parametric equalization for each input and output channel, including filter types such as PEQ/LoShelf/HiShelf/Allpass,Input and output channel high and low pass filters, type and slope can be flexibly set;

output channel divider Optional FIR filter (only models with FIR function: RP24F+, RP26F+, RP36F+, RP48F+)

6, The 3-terminal dynamic equalization of the input channel can greatly improve the audio performance of the system;

7, The delay of input and output channels is up to 1000ms;

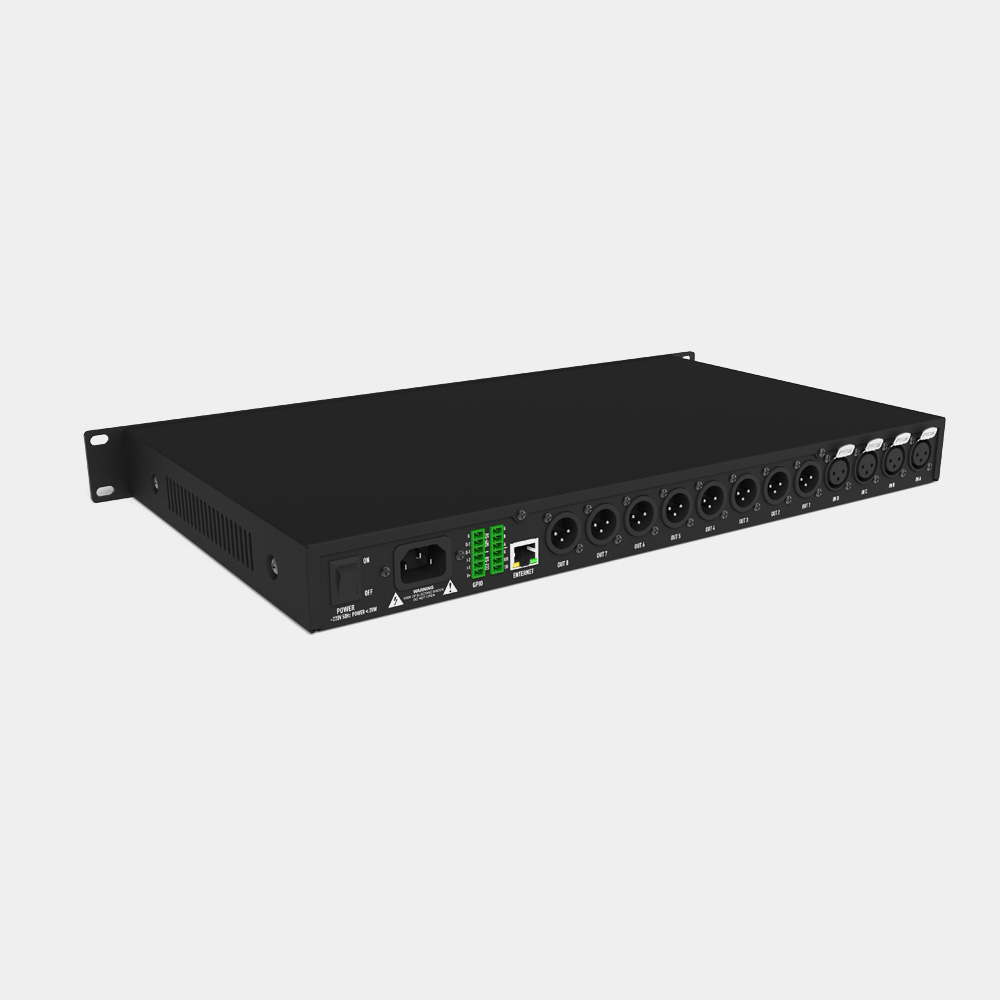

8, Ethernet+USB+RS232+RS485 and GPIO port, open protocol for third-party control;

9,2*20 character LCD display, signal level and status display, function keys and dials on the panel for flexible and fast function settings;

10. PC software automatically searches for online devices: 23 groups of preset storage spaces are provided, and can be imported and exported flexibly;

11. Channel link and channel copy functions improve the efficiency of engineer system collocation and debugging;

12. Full-port RF protection to protect the safe and reliable operation of the equipment and ensure the normal operation of the system run;
