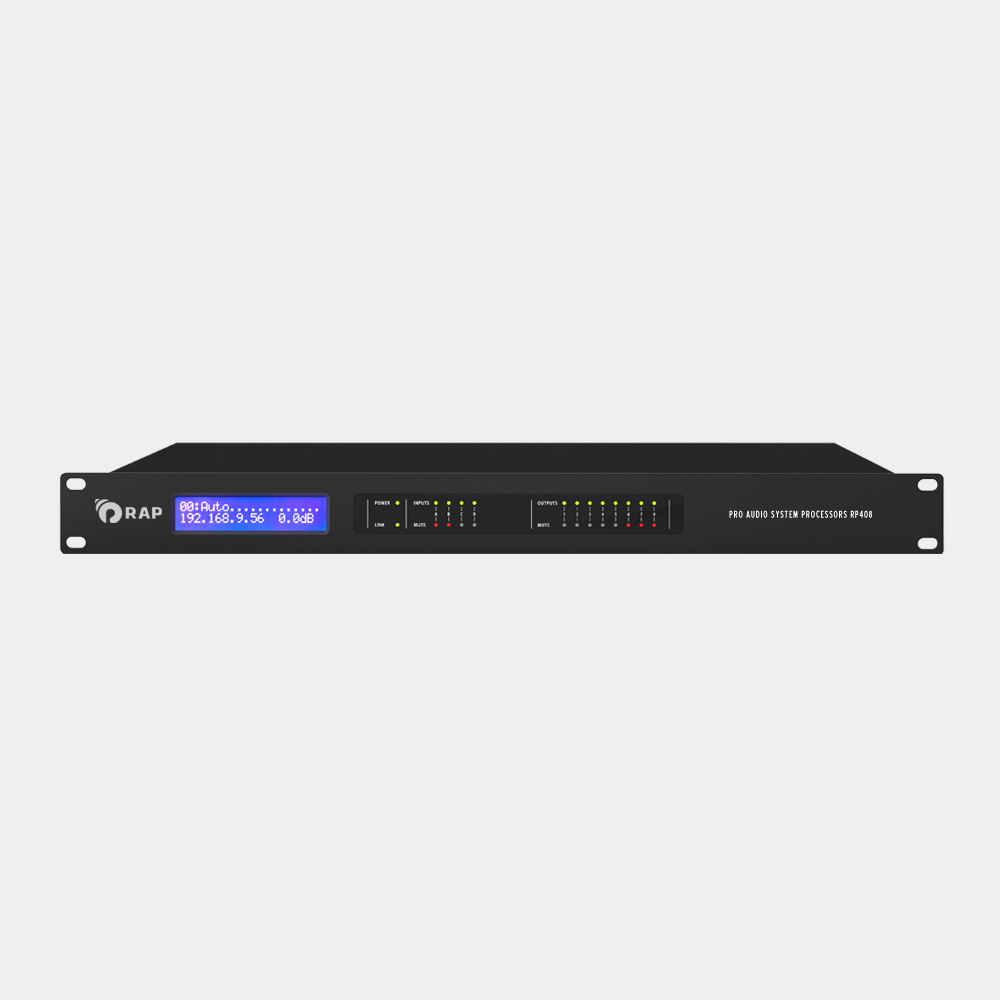

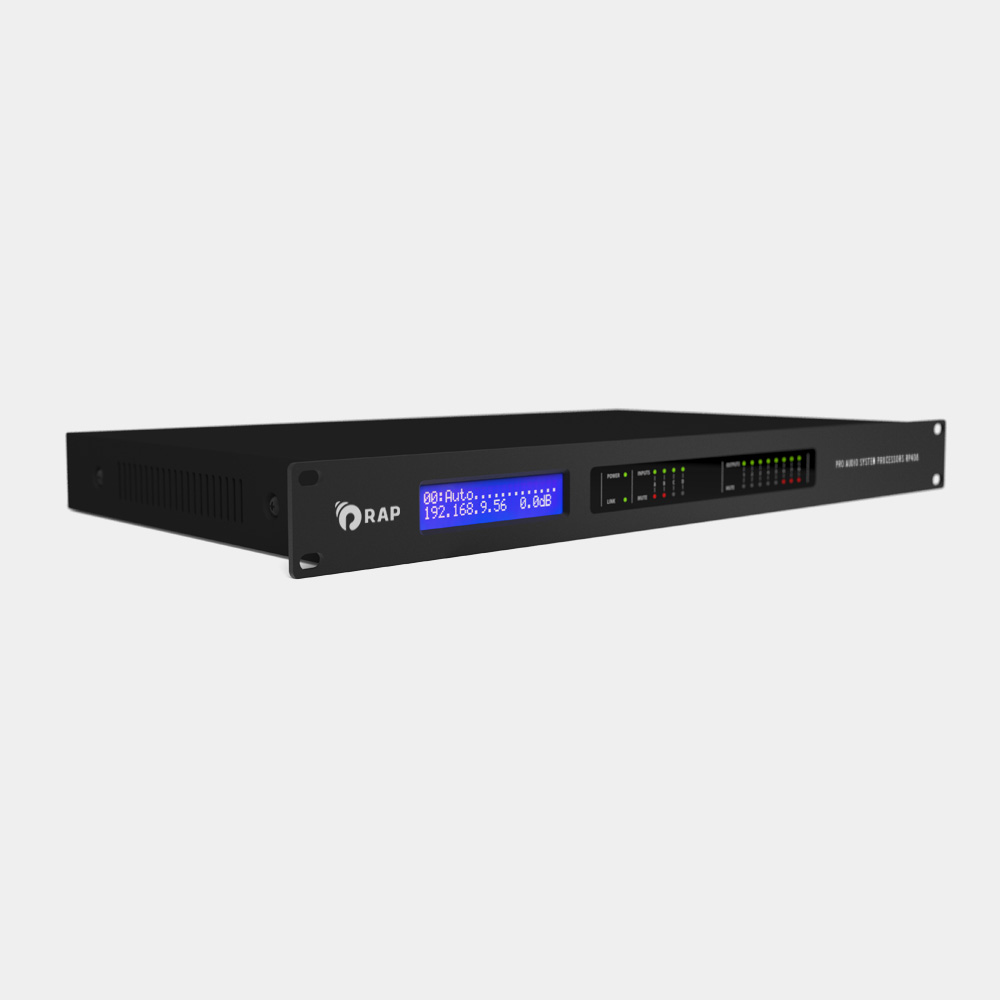

RP408

4 in 8 out audio processor (network control, with 485/232 and GPIO port)

The RP204/RP206/RP306/RP408 series audio processors integrate audio signal processing and equipment management, which can meet the needs of many applications such as performances, bars, conference rooms, and multi-function halls.

Features

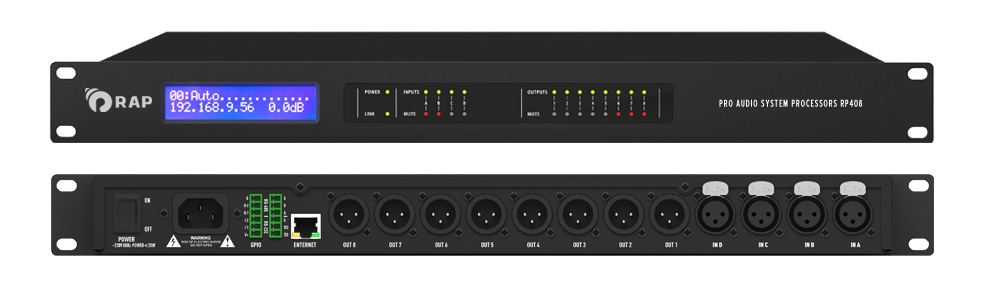

/uploads/image/2022/06/30/RP408-W-04.jpg

1. Using the fourth generation DSP chip of American Analog Devices--ADSP-21489 400MHz 32/40-bit floating-point DSP, 96KHz sampling rate

Adopt professional-grade 24-bit A/D and D/A conversion chips, ELNA electrolytic capacitors and other world-renowned audio-specific devices, the sound is pleasant to the ear;

2, Built-in sine, white noise, noise signal generator;

3, Input signal processing: volume, phase, mute, noise gate, feedback suppressor, parametric equalization, dynamic equalization, crossover, compressor,Delayer;

4, Output signal processing : Matrix mix, volume, phase, mute, crossover, compressor, limiter, delay;

5, 10-band parametric equalization for each input and output channel, including filter types such as PEQ/LoShelf/HiShelf/Allpass,

The high and low pass filters of the input and output channels, the type and slope can be flexibly set;

6, The dynamic equalization of the input channel 3 terminals can greatly improve the audio performance of the system;

7, The delay of input and output channels is up to 1000ms;

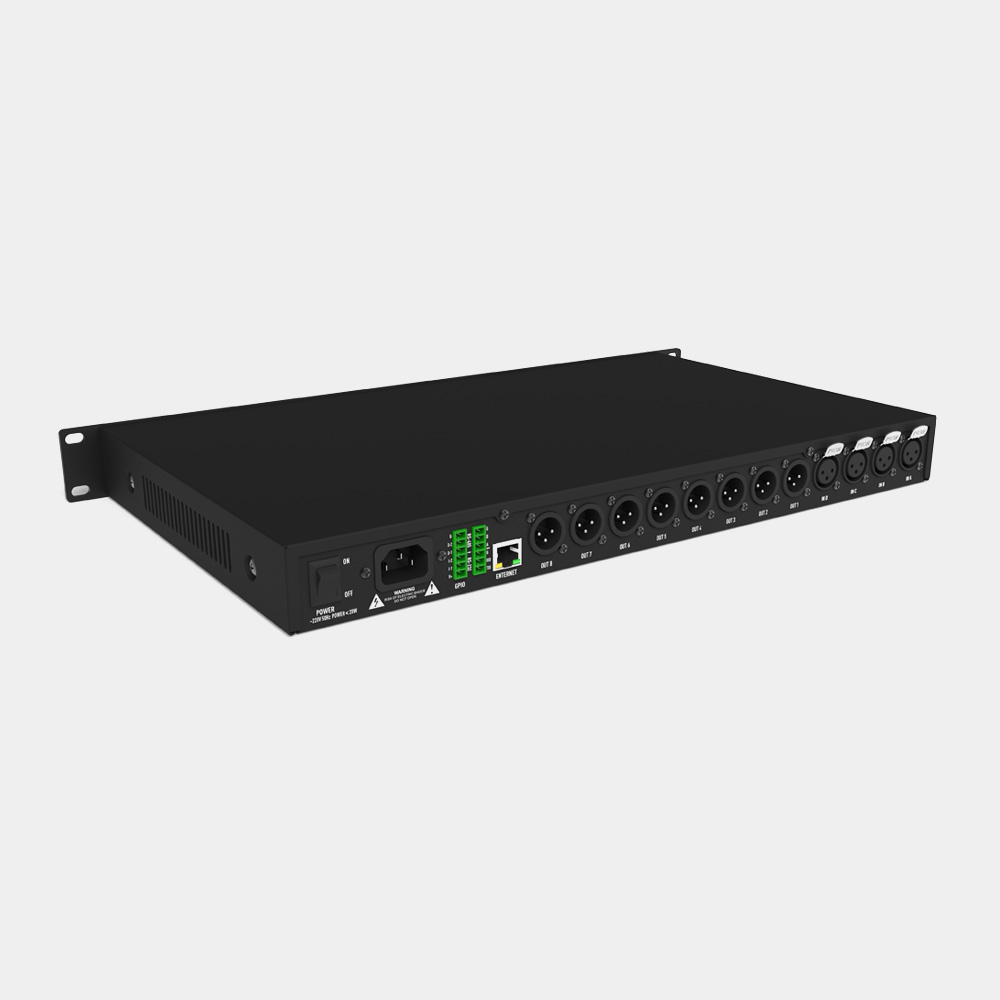

8, Ethernet+USB+RS232+RS485 and GPIO port, open protocol for third-party control;

9, 2*20 character LCD display, signal and status display;

10. PC software automatically searches for online equipment: Provides 23 groups of preset storage space, and flexible import and export;

11, channel link and channel copy functions improve the efficiency of engineer system collocation and debugging;

12. Full-port RF protection to protect the safe and reliable operation of the equipment and ensure the normal operation of the system;


Specifications

Input maximum level:

+20dBu

Maximum level of output channel:

+20dBu

Total Harmonic Distortion + Noise:

<0.0025%

Minimum fixed delay:

<2ms

Power:

~220V/50Hz

Net Weight:

4KG

Device Size:

483*270*45mm

......
